Introduction: From Static Loads to Active Assets
Bidirectional EV charging turns parked vehicles into flexible energy tools. The charge discharge module is the quiet engine that makes this shift real. Picture a mall car park at noon: rows of EVs, sun on the panels, and a local grid that flickers between need and excess. With bidirectional EV charging 170 in the loop, those cars can absorb, store, or feed energy as the grid asks. Cars sit idle for about 90% of the day; even a small fleet acts like a compact buffer. The principle is simple: a grid-tied inverter talks to the battery, tracks state of charge (SoC), and balances flows safely (insha’Allah, with care). Yet the details matter—timing, efficiency, and control—because energy moves in milliseconds. So, are we ready to move from passive plugs to active, rule-based power converters?
Where do legacy systems fall short?
Traditional one-way chargers were made for filling, not balancing. They respond slowly, waste heat at partial load, and hide SoC and health data behind basic protocols. Their switching frequency is fixed, so harmonics creep in during light demand—funny how that works, right? Many lack droop control for grid support, or fast fault handling on the DC bus. And when demand spikes, they cannot push power back with precision. Look, it’s simpler than you think: without a bidirectional inverter topology that coordinates voltage, current, and timing, you lose flexibility and revenue. You also miss fleet-level insights that edge computing nodes can deliver at the edge. These gaps become user pain: higher bills, shorter battery life, and no seat at the flexibility market. Let us compare what changes when the module itself gets smarter—and faster.
Comparative Insight: New Principles Behind Smarter Bidirectional Modules

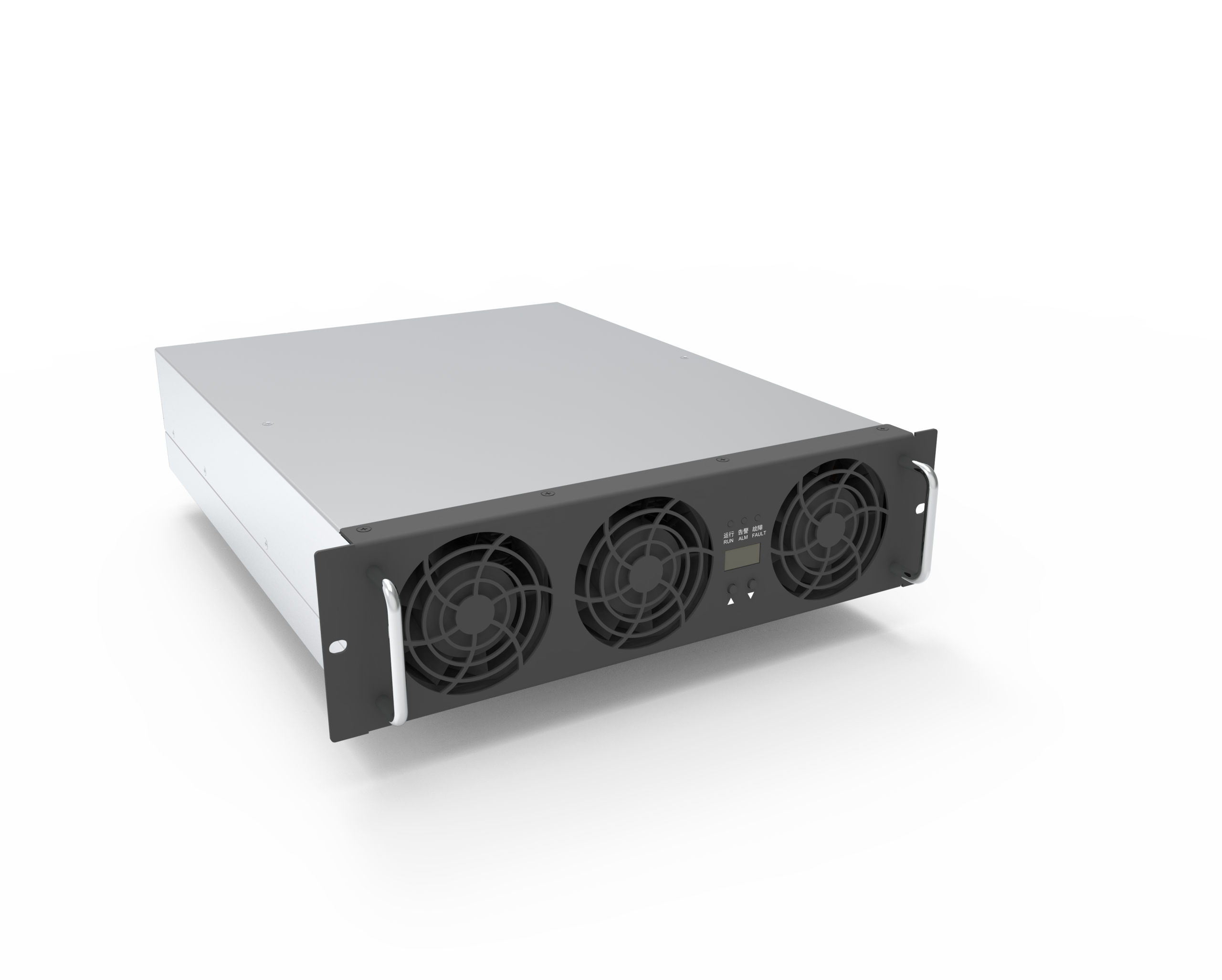

Modern bidirectional designs reshape the stack from silicon to software. Wide‑bandgap devices like SiC reduce losses and raise switching frequency, which trims heat and boosts partial-load efficiency. That means steadier power quality, fewer harmonics, and quieter thermal management. Digital control loops add fast response for grid events, and reactive power support becomes native. Protocols such as ISO 15118‑20 align with OCPP to expose real SoC, enable secure plug‑and‑charge, and support vehicle‑to‑grid dispatch. In practice, a well‑tuned module—like a 22kw EV charger module—coordinates the DC bus, inverter topology, and protection in one brain. Then it hands clean data up to the site controller and aggregator. One change, many effects—fewer conversion steps, safer limits, and better revenue alignment. And yes, cybersecurity and firmware lifecycle now live inside the module itself — and that small change unlocks a lot.
What’s Next
Consider a depot that charges at night and supports the grid by day. With a smart controller and consistent telemetry, each stall becomes a dispatchable unit. The site bids into flexibility programs, trims peaks, and supports voltage during local stress. The module tracks battery health, balances cells, and avoids harsh cycling to protect warranties. Over time, the system learns local patterns: solar midday ramps, evening ramps, and weekend dips. It schedules around them. The result is not magic; it is a cleaner handoff between control layers and power electronics. Summing up: traditional one-way gear strains in fast markets, while integrated bidirectional modules turn timing into value. Small delays cost money; fast response creates it — funny how the grid teaches patience.
If you are choosing a platform, focus on three metrics. First, efficiency across the curve: not only peak, but 10–30% load where fleets live; watch thermal derating. Second, control performance: millisecond response to grid codes, clean reactive power, and stable droop behavior during disturbances. Third, interoperability and security: ISO 15118‑20, OCPP, signed firmware, and clear SoC APIs for aggregator settlement. Get those right, and the rest follows. Keep the system simple to operate, transparent in data, and robust under stress. In the end, the best module is the one your operators trust and your accountant can measure. For more context and technical depth, see winline EV charging.
