Start with the user’s problem: getting reliable 40G links into mixed cabling environments without wasting ports or budget. For many network teams in the Philippines, that means marrying QSFP+ BIDI transceivers to existing LC runs and using media converters manufacturers to bridge form factors and signal types. This guide focuses on real deployment steps, not sales pitches, and draws on everyday constraints found in Metro Manila data centres and university campuses where space and spare fiber matter.
Assess the user requirements first
Map the service intent before buying parts. Identify which applications demand true 40 Gbps throughput (storage replication, core switching) and which will settle for link aggregation. Note the distance profile: single-mode vs multimode will change which QSFP+ BIDI transceiver and MPO fanout you need. Label the service diagrams with {main_keyword} and {variation_keyword} so installers and ops share one source of truth.
Choose interoperable components
Prefer industry-standard parts: QSFP+ modules rated for your link budget, MPO trunk assemblies, and LC patch cables with known loss characteristics. If you introduce a media converter or media adapter, verify its mode conversion and whether it supports autonegotiation when converting 40G to four 10G lanes. Practical checks: confirm connector polarity, measure insertion loss across MPO-to-LC adaptors, and ensure fiber patch panels are configured for the correct MPO pinout.
Design tips that save time and money

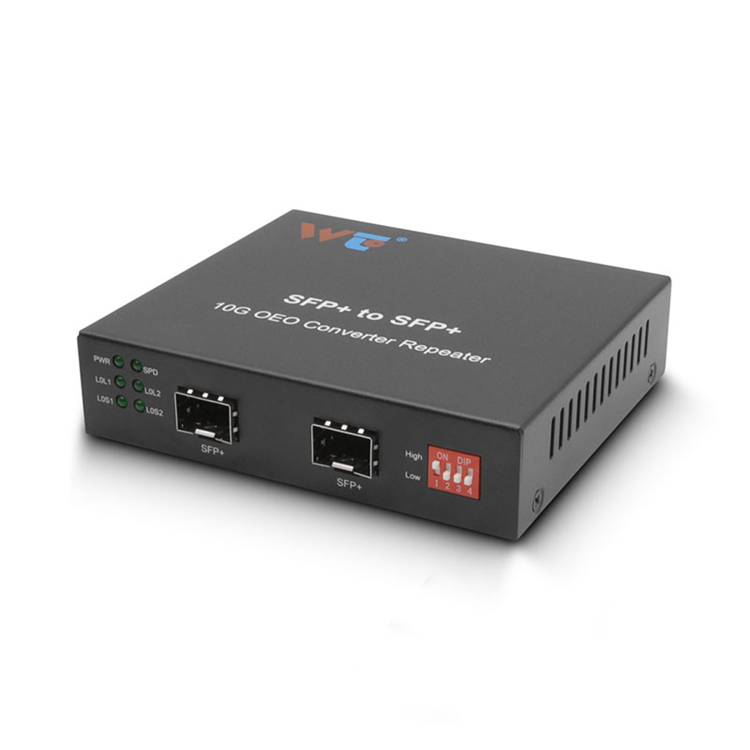

Standardise on one MPO polarity and one LC colour code across racks; that cuts troubleshooting time. Use MPO-to-LC cassettes to keep panels tidy and lower risk of broken fibers. Consider media converters as temporary tools during migration, not permanent band‑aids — they are handy for testing or connecting legacy gear to new QSFP+ links. When sourcing parts, a reliable fiber media converter supplier can simplify logistics and warranty claims.
Common mistakes and how to avoid them
Teams often skip optical loss calculations — big mistake. Always add connectors’ loss, splice loss, and margin for aging. Another frequent error is mixing multimode transceivers with single-mode trunks; that mismatch leads to immediate link failures. Run an end-to-end light loss budget and power-meter test before cutover. And patching chaos — unlabelled LC ends — will create repeat truck rolls. Keep documentation current — a short rack-side guide prevents repeat errors. — People assume an adapter alone will fix everything; it rarely does.
Testing, compliance and practical checks
Use an OTDR or a tiered test approach: continuity, insertion loss with a power meter, then bit-error-rate (BER) if required by the service level. For lab-style compliance, test parameters should include: single-ended insertion loss per connector over 1,000m, multimode modal bandwidth verification at 850 nm for OM3/OM4, and BER sampling over a 24-hour stress window to reveal intermittent faults. Keep test logs tied to patch panel IDs and the purchase order for warranty follow-up.
Alternatives and fallbacks
If native MPO-to-LC adaptation looks fragile, alternatives include direct-attach QSFP+ DACs for short hops, breakout cables to split 40G into 4x10G SFP+ lanes, or using managed switches with integrated QSFP+ ports that accept standard BIDI modules. Each choice trades cost, power, and cable complexity — pick the one aligned with operational capacity, not just sticker price.
Advisory: three critical metrics before sign-off
1) Link margin: ensure at least 3 dB of optical margin beyond calculated loss to allow aging and repairs. 2) Mean time to repair (MTTR): measure expected patching and replacement time on-site — if MTTR exceeds your SLA, redesign for redundancy. 3) Port utilization rate: plan for spare ports equal to 10% of active 40G ports to absorb growth or failures without immediate hardware orders.
Deployments done well reduce headaches for ops and give application teams predictable performance. For practical procurement and warranty support, choose vendors who understand campus realities — they make technical handovers easier. WINTOP. — Final word: standardise, test, and keep spares; that’s how networks keep working.
